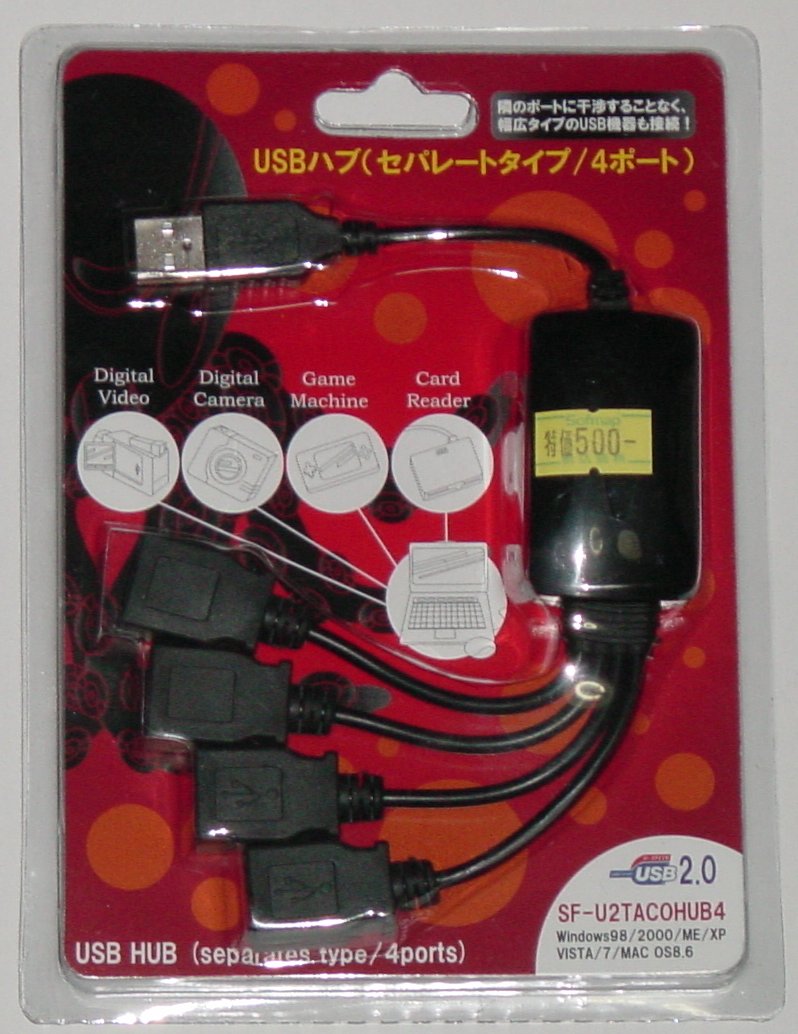

４ポート HUB 入手

このタイプの USB-HUB は普通、千数百円するが、 ノーブランド品かつ処分品という事で約１／３で入手。

玄柴に刺してみた

root@debian:~# tail -f /var/log/messages
	:
	:
Jun 30 23:06:41 debian kernel: usb 1-1: new high speed USB device using orion-ehci and address 2
Jun 30 23:06:41 debian kernel: hub 1-1:1.0: USB hub found
Jun 30 23:06:41 debian kernel: hub 1-1:1.0: 4 ports detected

KURO-RS を刺してみる

Jun 30 23:08:56 debian kernel: usb 1-1.1: new full speed USB device using orion-ehci and address 3
Jun 30 23:08:56 debian kernel: ftdi_sio 1-1.1:1.0: FTDI USB Serial Device converter detected
Jun 30 23:08:56 debian kernel: usb 1-1.1: Detected FT232BM
Jun 30 23:08:56 debian kernel: usb 1-1.1: Number of endpoints 2
Jun 30 23:08:56 debian kernel: usb 1-1.1: Endpoint 1 MaxPacketSize 64
Jun 30 23:08:56 debian kernel: usb 1-1.1: Endpoint 2 MaxPacketSize 64
Jun 30 23:08:56 debian kernel: usb 1-1.1: Setting MaxPacketSize 64
Jun 30 23:08:56 debian kernel: usb 1-1.1: FTDI USB Serial Device converter now attached to ttyUSB0

D02HW も刺してみる

Jun 30 23:10:03 debian kernel: usb 1-1.1: new full speed USB device using orion-ehci and address 4
Jun 30 23:10:03 debian kernel: ftdi_sio 1-1.1:1.0: FTDI USB Serial Device converter detected
Jun 30 23:10:03 debian kernel: usb 1-1.1: Detected FT232BM
Jun 30 23:10:03 debian kernel: usb 1-1.1: Number of endpoints 2
Jun 30 23:10:03 debian kernel: usb 1-1.1: Endpoint 1 MaxPacketSize 64
Jun 30 23:10:03 debian kernel: usb 1-1.1: Endpoint 2 MaxPacketSize 64
Jun 30 23:10:03 debian kernel: usb 1-1.1: Setting MaxPacketSize 64
Jun 30 23:10:03 debian kernel: usb 1-1.1: FTDI USB Serial Device converter now attached to ttyUSB0
Jun 30 23:10:14 debian kernel: usb 1-1.2: new full speed USB device using orion-ehci and address 5
Jun 30 23:10:14 debian kernel: scsi0 : usb-storage 1-1.2:1.0
Jun 30 23:10:14 debian kernel: usb 1-1.2: USB disconnect, address 5
Jun 30 23:10:15 debian kernel: usb 1-1.2: new full speed USB device using orion-ehci and address 6
Jun 30 23:10:15 debian kernel: scsi3 : usb-storage 1-1.2:1.2
Jun 30 23:10:15 debian kernel: USB Serial support registered for GSM modem (1-port)
Jun 30 23:10:15 debian kernel: option 1-1.2:1.0: GSM modem (1-port) converter detected
Jun 30 23:10:15 debian kernel: usb 1-1.2: GSM modem (1-port) converter now attached to ttyUSB1
Jun 30 23:10:15 debian kernel: option 1-1.2:1.1: GSM modem (1-port) converter detected
Jun 30 23:10:15 debian kernel: usb 1-1.2: GSM modem (1-port) converter now attached to ttyUSB2
Jun 30 23:10:15 debian kernel: usbcore: registered new interface driver option
Jun 30 23:10:15 debian kernel: option: v0.7.2:USB Driver for GSM modems
Jun 30 23:10:16 debian kernel: scsi 3:0:0:0: CD-ROM            HUAWEI   Mass Storage     2.31 PQ: 0 ANSI: 2
Jun 30 23:10:16 debian kernel: scsi 3:0:0:0: Attached scsi generic sg0 type 5
Jun 30 23:10:16 debian kernel: sr0: scsi-1 drive
Jun 30 23:10:16 debian kernel: Uniform CD-ROM driver Revision: 3.20

UCAM-DLP130TBK を刺してみる

Jun 30 23:21:50 debian kernel: usb 1-1.2: new high speed USB device using orion-ehci and address 7
Jun 30 23:21:50 debian kernel: uvcvideo: Found UVC 1.00 device Venus USB2.0 Camera (0ac8:c500)
Jun 30 23:21:50 debian kernel: input: Venus USB2.0 Camera as /devices/platform/orion-ehci.0/usb1/1-1/1-1.2/1-1.2:1.0/input/input1
