シリアルコンソールを探す


MeoBank SD にもシリアルコンソールが引き出せれば、ハックが進む。
LinkStation のシリアルコンソールを探すための

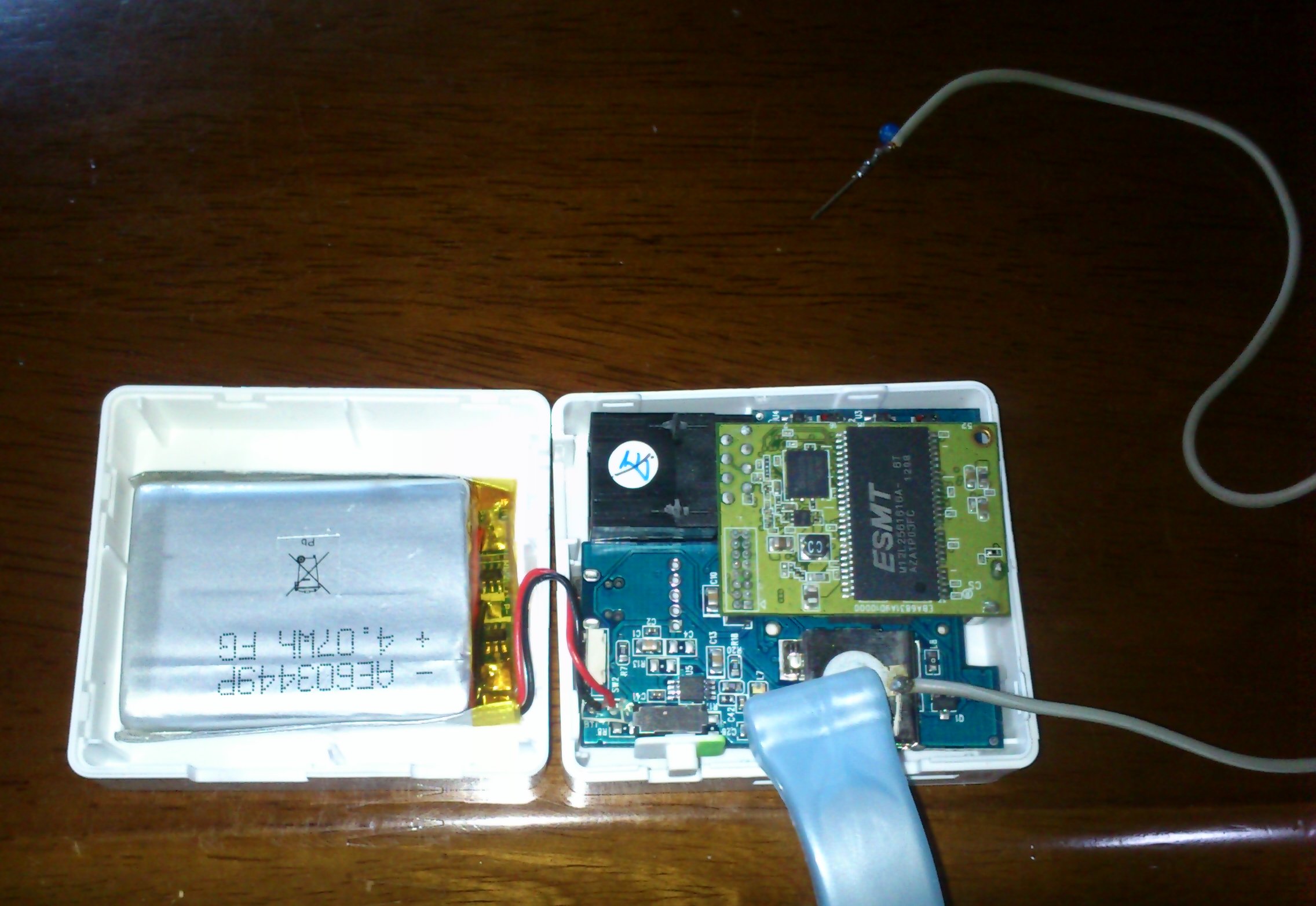

自作プローブ (SCON-KIT/PROの先にワッシャとマチ針!をハンダ付けしたもの)
MeoBank SD のアチラこちらのランドを突っついてみた。

まぁ、そう簡単に見つかるものではない。
ましてや、CPUがドータボードに載っているので、 肝心なCPU周りが突けない。

(1)まち針でランドを突く
(2)MeoBank SD の電源を入れる
(3)しばらく待つ。何も出なければ次のランドへ
(4)もし、

マ   タタタ タタ ィ「、タタタタタ タタタ  タタタ   タ
                                  リ タタ
                                    タ    タ タ
                                          タタ タタ「  タ  タ タ  タタタタ
                                                               タタ タヤメ タタタタタ タ ネ タ
 ・
  タ   チ   チ

            タ タ
 @ P @@  @@@@  @@@@@  ・タミ      タクタィタタタタ ー   チ ミ
                  @ @ @ 0A@@ B    $$ @ P@ P誓@整@@  $  @@@    @  @@    @A @ D  @@P@H                                                         「         @@  @
@@@ @@  @@@@@@@ " @  @  @@  @@  @  誓A徹 @HB(B @  h@   $   $@+  Bタ      タタ、タタタ ト
こんなのが出れば、通信速度やデータ長、パリティ、ストップビットを変えて 電源ON,OFF。なんとか文字にならないかを試行錯誤

というのを何度も繰り返すこと4時間ほど、、、

上下をつなぐコネクタの3つ目のピンで、、、

キター!

 decompressing kernel:
Uncompressing Linux... done, booting the kernel.
done decompressing kernel.
start address: 0x80003600
RTL8192C/RTL8188C driver version 1.6 (2011-07-18)



Probing RTL8186 10/100 NIC-kenel stack size order[3]...
chip name: 8196C, chip revid: 0
NOT YET
eth0 added. vid=9 Member port 0x1...
eth1 added. vid=8 Member port 0x10...
eth2 added. vid=9 Member port 0x2...
eth3 added. vid=9 Member port 0x4...
eth4 added. vid=9 Member port 0x8...
[peth0] added, mapping to [eth1]...
init started: BusyBox v1.13.4 (2012-10-05 13:27:36 CST)
Init Start...
Init bridge interface...
Start NTP daemon
Init Wlan application...

WiFi Simple Config v2.3 (2011.11.08-13:03+0000).

Register to wlan0
route: SIOCDELRT: No such process
iwcontrol RegisterPID to (wlan0)
IEEE 802.11f (IAPP) using interface br0 (v1.7)
Init WAN Interface...
basename(1)
basename(2 /sys/block/sda)
basename(2 /block/sda)
basename(2 /sda)
basename(3 sda)
basename(1)
basename(2 /sys/block/sda)
basename(2 /block/sda)
basename(2 /sda)
basename(3 sda)
try_mount(1) sda, /var/tmp/usb/sda1
CMD: /bin/ntfs-3g /dev/sda /var/tmp/usb/sda1 -o force

Error opening '/dev/sda': No such device or address
Failed to mount '/dev/sda': No such device or address
Either the device is missing or it's powered down, or you have
SoftRAID hardware and must use an activated, different device under
/dev/mapper/, (e.g. /dev/mapper/nvidia_eahaabcc1) to mount NTFS.
Please see the 'dmraid' documentation for help.
CMD: mount.exfat-fuse /dev/sda /var/tmp/usb/sda1 -o force &

FUSE exfat 0.9.5
ERROR: failed to open `/dev/sda'.
CMD: /bin/ntfs-3g /dev/sda /var/tmp/usb/sda1 -o ro,force

Error opening '/dev/sda': No such device or address
Failed to mount '/dev/sda': No such device or address
Either the device is missing or it's powered down, or you have
SoftRAID hardware and must use an activated, different device under
/dev/mapper/, (e.g. /dev/mapper/nvidia_eahaabcc1) to mount NTFS.
Please see the 'dmraid' documentation for help.
CMD: mount.exfat-fuse /dev/sda /var/tmp/usb/sda1 -o ro,force &

FUSE exfat 0.9.5
ERROR: failed to open `/dev/sda'.
CMD: /bin/mount /dev/sda /var/tmp/usb/sda1

mount: mounting /dev/sda on /var/tmp/usb/sda1 failed: No such device or address
basename(1)
basename(2 /sys/block/sda/sda1)
basename(2 /block/sda/sda1)
basename(2 /sda/sda1)
basename(2 /sda1)
basename(3 sda1)
basename(1)
basename(2 /sys/block/sda/sda1)
basename(2 /block/sda/sda1)
basename(2 /sda/sda1)
basename(2 /sda1)
basename(3 sda1)
try_mount(1) sda1, /var/tmp/usb/sda1
CMD: /bin/ntfs-3g /dev/sda1 /var/tmp/usb/sda1 -o force

Error opening '/dev/sda1': No such device or address
Failed to mount '/dev/sda1': No such device or address
Either the device is missing or it's powered down, or you have
SoftRAID hardware and must use an activated, different device under
/dev/mapper/, (e.g. /dev/mapper/nvidia_eahaabcc1) to mount NTFS.
Please see the 'dmraid' documentation for help.
CMD: mount.exfat-fuse /dev/sda1 /var/tmp/usb/sda1 -o force &

FUSE exfat 0.9.5
ERROR: failed to open `/dev/sda1'.
CMD: /bin/ntfs-3g /dev/sda1 /var/tmp/usb/sda1 -o ro,force

Error opening '/dev/sda1': No such device or address
Failed to mount '/dev/sda1': No such device or address
Either the device is missing or it's powered down, or you have
SoftRAID hardware and must use an activated, different device under
/dev/mapper/, (e.g. /dev/mapper/nvidia_eahaabcc1) to mount NTFS.
Please see the 'dmraid' documentation for help.
CMD: mount.exfat-fuse /dev/sda1 /var/tmp/usb/sda1 -o ro,force &

FUSE exfat 0.9.5
ERROR: failed to open `/dev/sda1'.
CMD: /bin/mount /dev/sda1 /var/tmp/usb/sda1

mount: mounting /dev/sda1 on /var/tmp/usb/sda1 failed: No such device or address
#

こういう、世界で誰もやったことがないことができた瞬間が、

た ま ら ん !!
